Soft Tissue Neck anatomy, structure by structure

Soft tissue neck MRI is the workhorse study for the airway, thyroid, salivary glands, and the great vessels in the lower neck, and reading it confidently starts with knowing the normal anatomy cold. This reference walks through every structure in our soft tissue neck flashcard deck across the two standard planes (coronal and sagittal), with a plain-language definition, how each structure looks on MRI, and the pathology you will actually run into at the scanner.

Airway and pharynx

The midline air and food passages plus the muscular tongue and bony palate that shape them. The sagittal midline lines them up top to bottom; the coronal shows the airway in cross section against the soft tissues.

Tongue

The large muscular organ filling the floor of the mouth that handles speech, chewing, and swallowing.

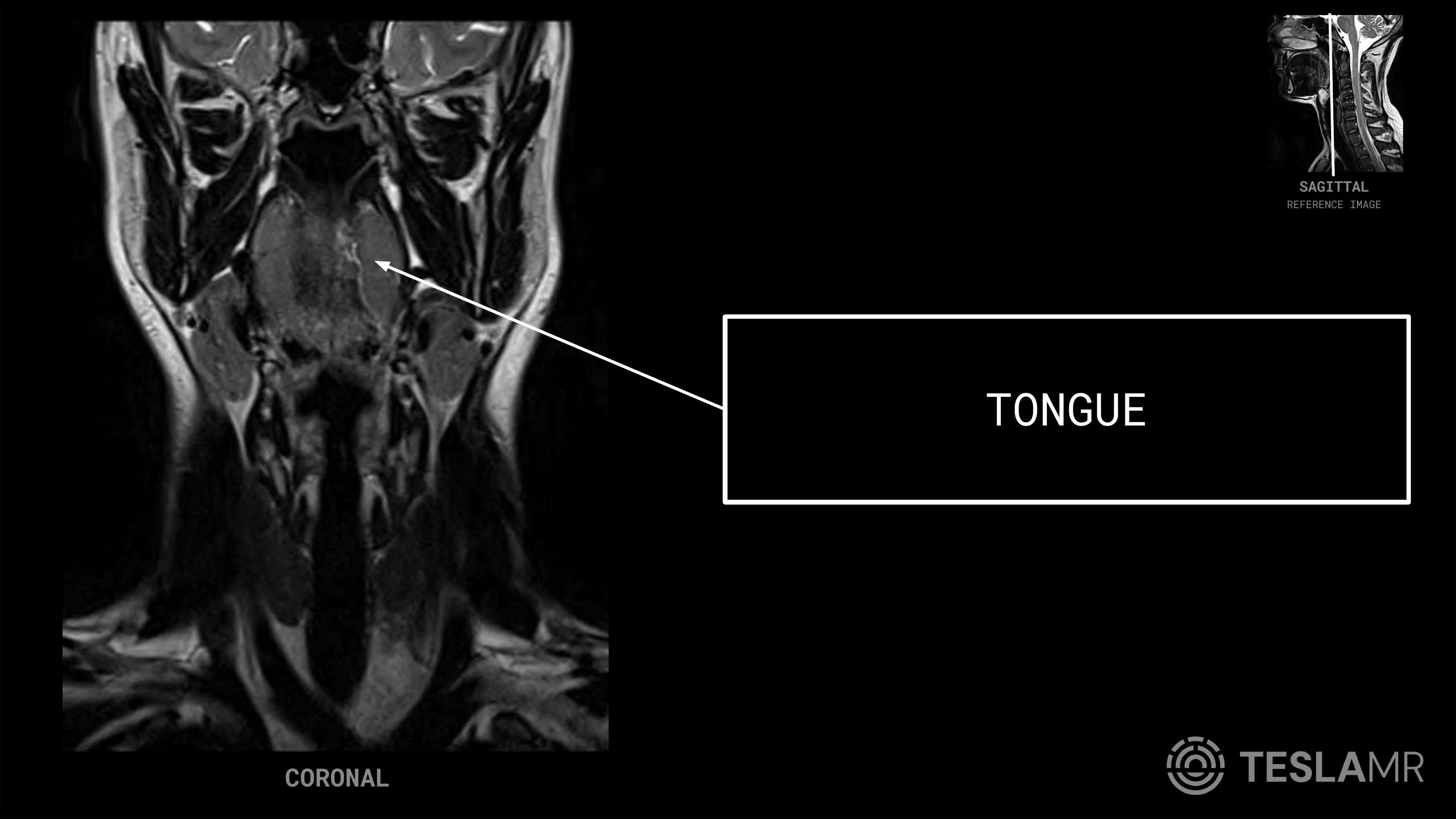

On MRI: A bulky soft-tissue mass in the oral cavity, best seen on midline sagittal and on coronal through the mouth. Its muscle has intermediate T1/T2 signal, often with a thin fatty lingual septum down the midline that is bright on T1.

Common pathology: Squamous cell carcinoma of the oral tongue and base of tongue, vascular malformations, and post-treatment changes; MRI is used to map depth of invasion and nodal spread.

Tip: On the midline sagittal it is the soft-tissue dome sitting just above the hyoid bone and behind the hard palate.

Hard Palate

The bony front portion of the roof of the mouth that separates the oral cavity from the nasal cavity.

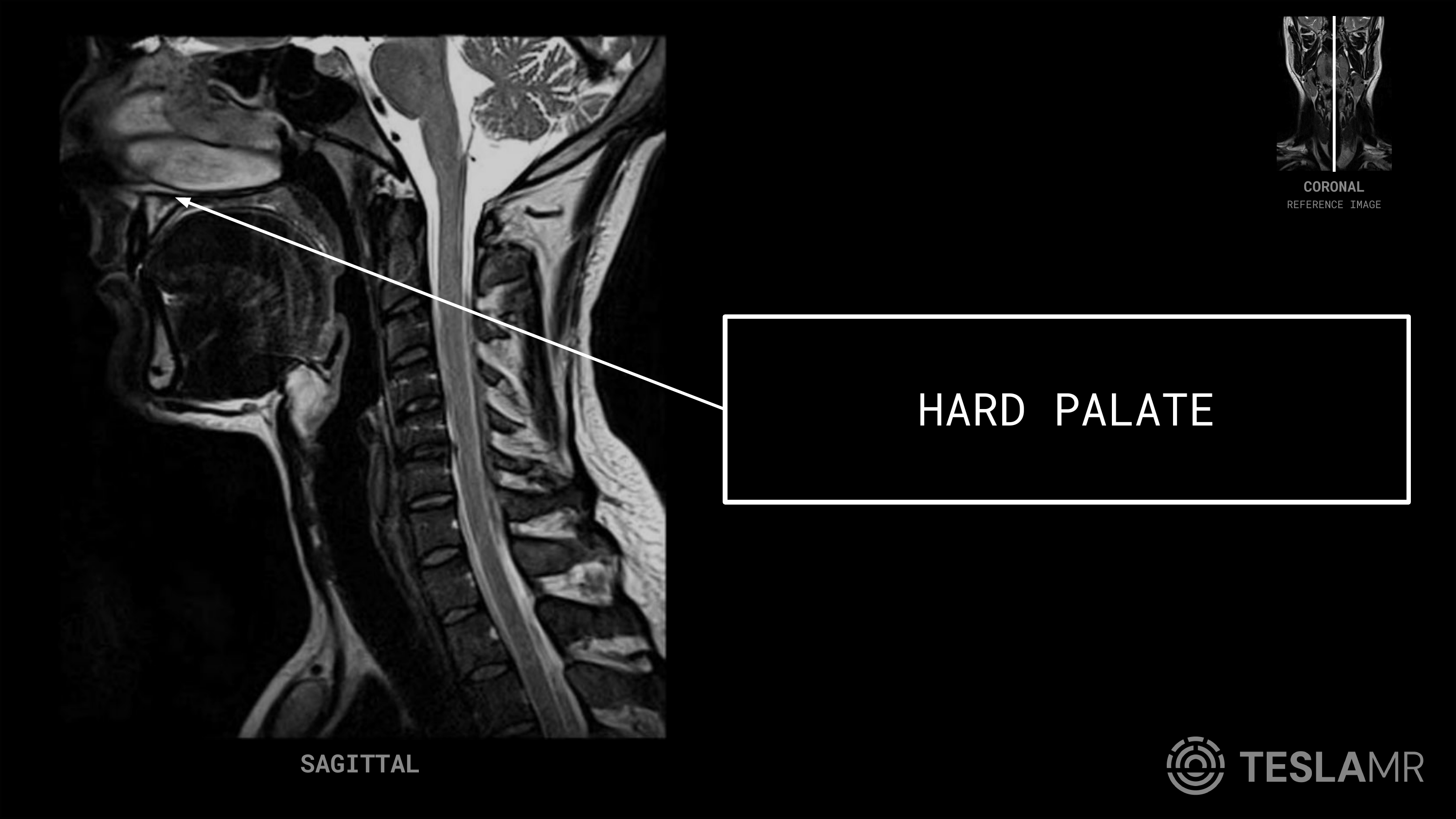

On MRI: A thin, slightly curved plate above the tongue on midline sagittal; its cortical bone is dark with brighter fatty marrow, and it separates the air-filled nasal cavity above (signal-void and black) from the oral cavity below.

Common pathology: Squamous cell carcinoma, minor salivary gland tumors, and clefts; perineural spread along palatine nerves is assessed on dedicated sequences.

Trachea

The cartilaginous airway (windpipe) carrying air from the larynx down toward the lungs.

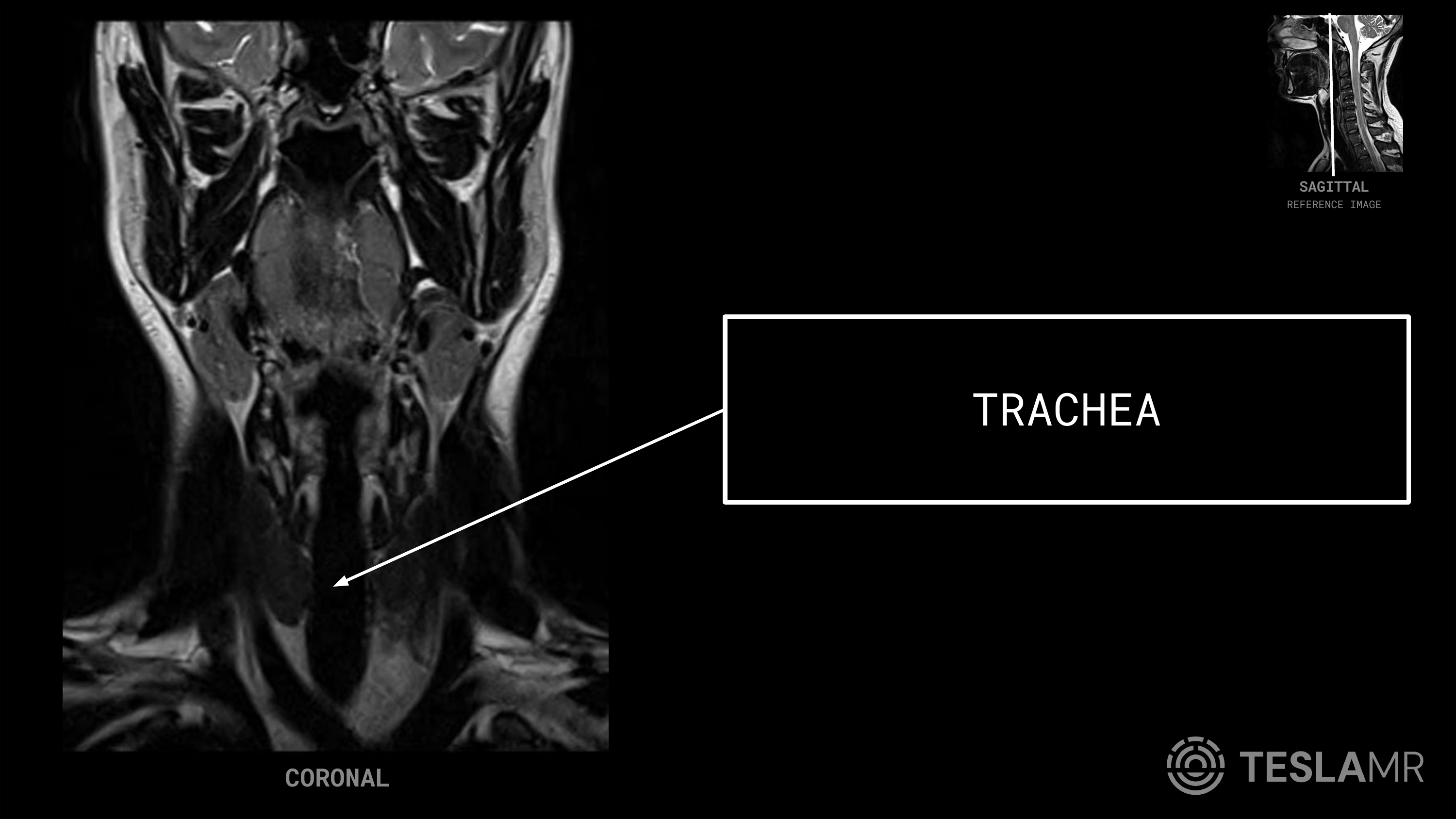

On MRI: A vertical air-filled column in the lower neck, signal-void (black) when air-filled, running in the midline anterior to the esophagus. Best followed top to bottom on midline sagittal and seen as a round black lumen on coronal.

Common pathology: Tracheal deviation or compression from thyroid masses or goiter, stenosis, and tumor invasion of the tracheal wall.

Tip: It is the larger, more anterior black air column; the thinner collapsed tube just behind it is the esophagus.

Esophagus

The muscular tube that carries food from the pharynx down to the stomach, sitting just behind the trachea.

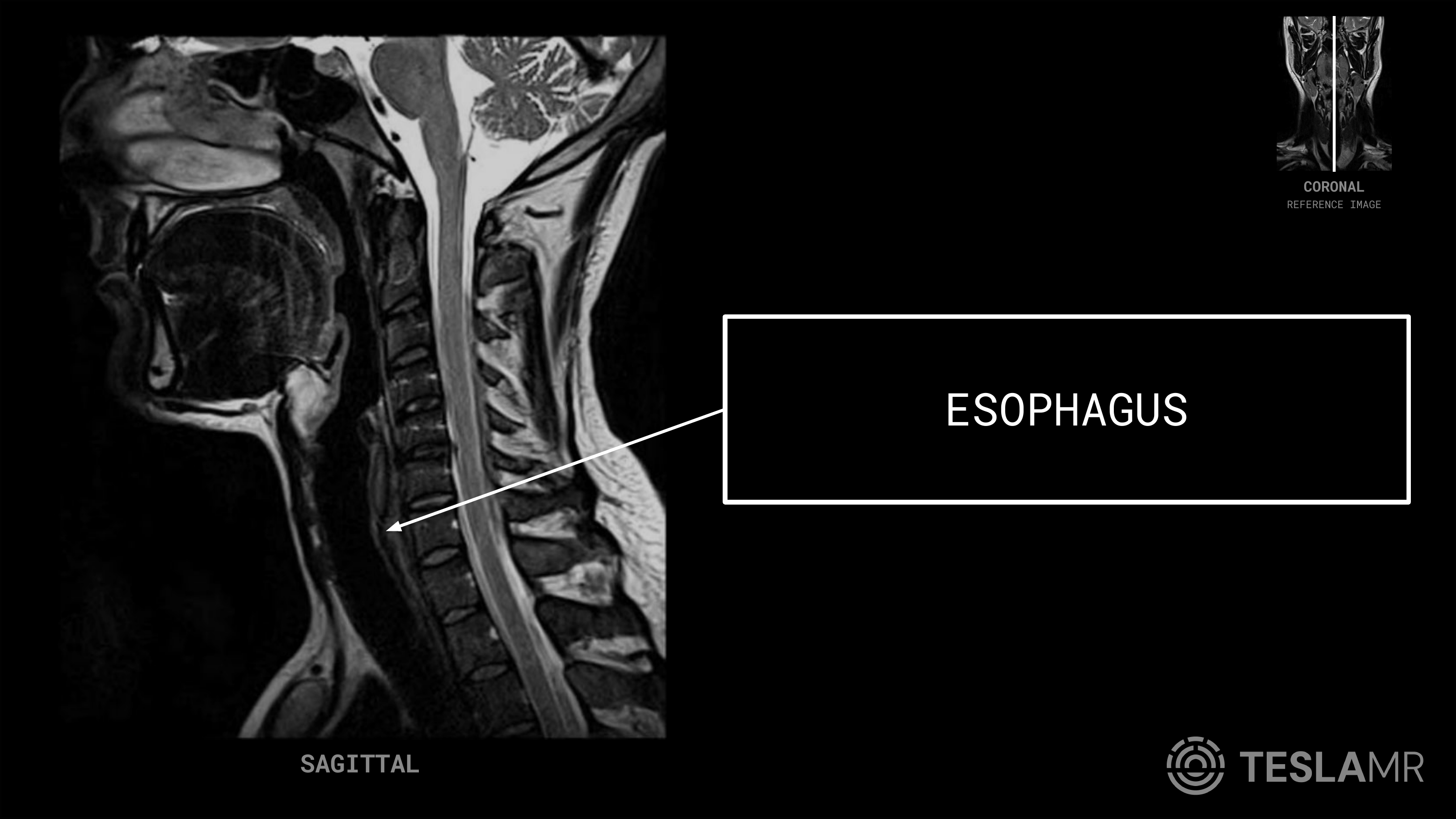

On MRI: A small, usually collapsed soft-tissue tube directly posterior to the trachea on midline sagittal, often with a thin slit of internal signal. It can be subtle when empty and may show a tiny pocket of air or fluid.

Common pathology: Esophageal carcinoma, retropharyngeal extension of disease, and post-radiation thickening; on neck MRI it is mostly a landmark for anterior-posterior orientation.

Thyroid and salivary glands

The glandular soft tissues of the neck: the two thyroid lobes wrapping the lower airway and the major and minor salivary glands. On MRI these are appreciated for symmetry, size, and signal compared to surrounding muscle.

Right Lobe

The right lobe of the thyroid gland, the endocrine gland straddling the lower trachea that produces thyroid hormone.

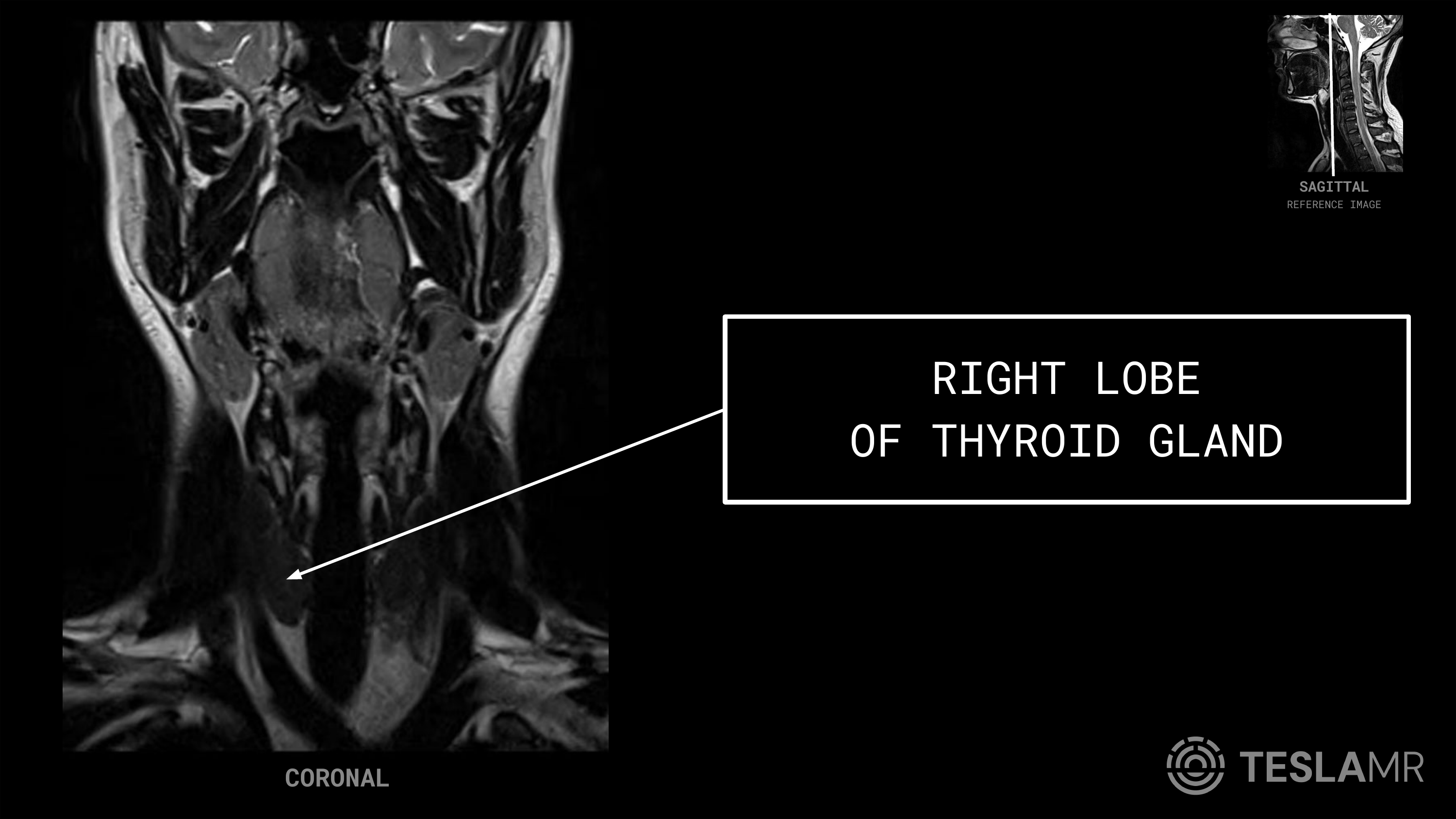

On MRI: A wedge of homogeneous soft tissue lateral to the trachea on the right, slightly brighter than adjacent strap muscle on T1 and T2, joined to the left lobe by the midline isthmus.

Common pathology: Nodules, goiter, thyroiditis, and carcinoma; asymmetric enlargement can displace or compress the trachea and carotid sheath.

Tip: On coronal it pairs with the left lobe as two soft-tissue caps sitting against either side of the upper trachea.

Left Lobe

The left lobe of the thyroid gland, the mirror counterpart of the right lobe lateral to the left side of the trachea.

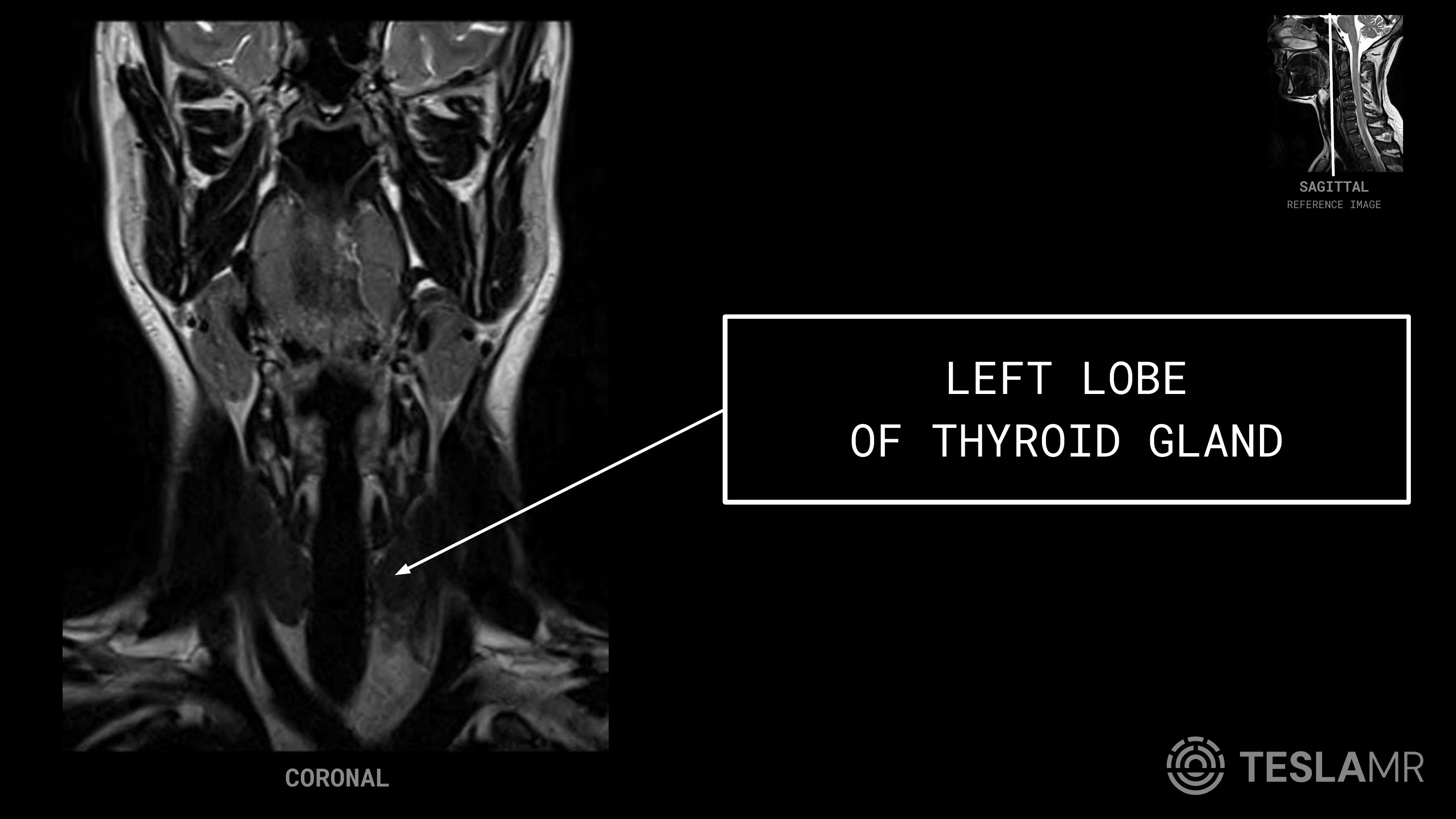

On MRI: A homogeneous soft-tissue lobe to the left of the trachea, normally symmetric with the right lobe in size and signal; brighter than strap muscle on T1 and T2.

Common pathology: Nodules, multinodular goiter, thyroiditis, and carcinoma; compare side to side for asymmetry, focal nodules, or tracheal deviation.

Left Parotid Gland

The largest salivary gland, sitting in front of and below the left ear, draining saliva into the mouth via Stensen duct.

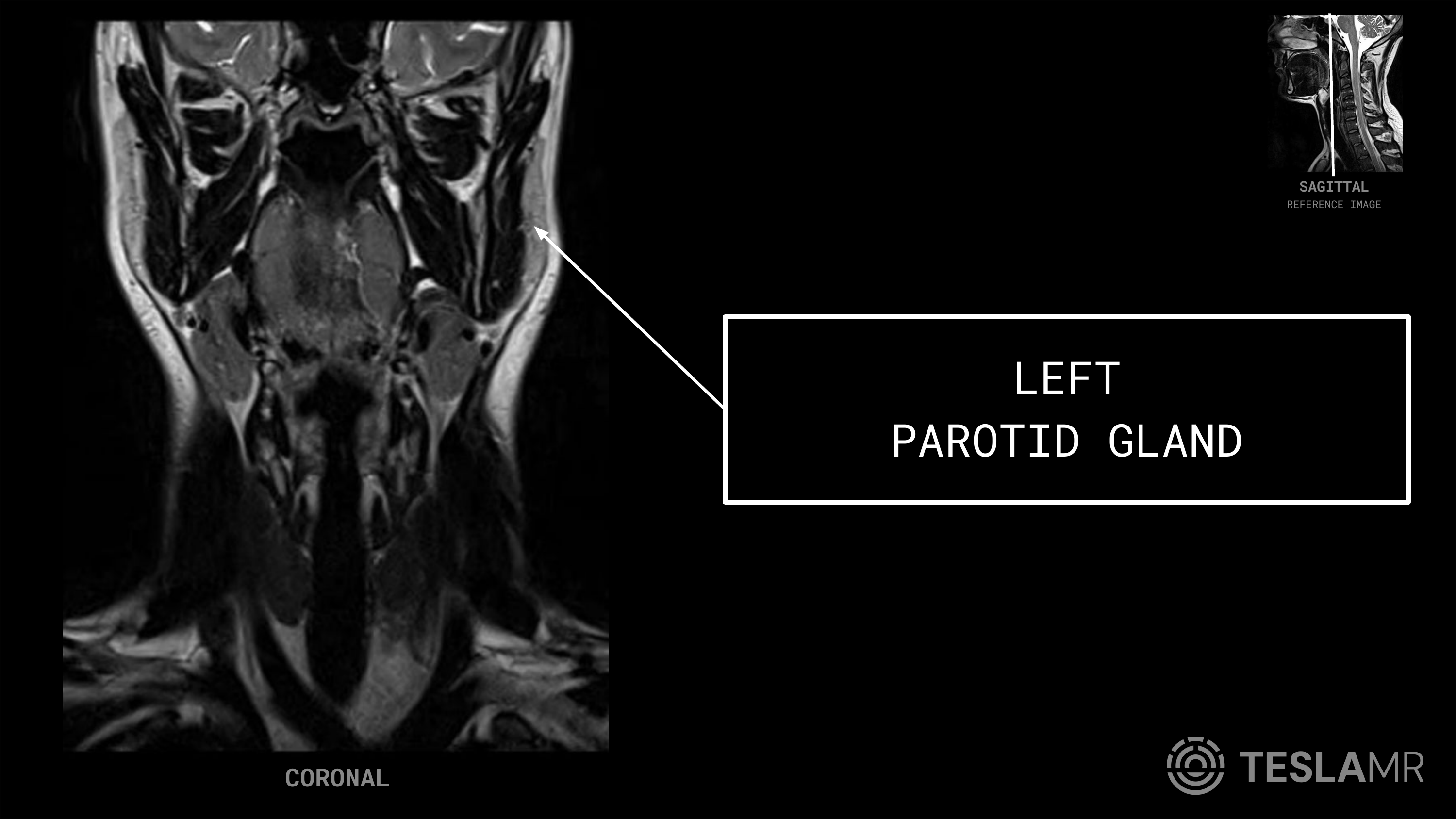

On MRI: A large, fatty-appearing gland in the left parotid space, relatively bright on T1 because of its fat content; the facial nerve and retromandibular vein run through it as landmarks.

Common pathology: Pleomorphic adenoma and Warthin tumor (benign), mucoepidermoid carcinoma, sialadenitis, and stones; MRI characterizes masses and maps the facial nerve plane.

Left Submandibular Gland

A major salivary gland that sits under the floor of the mouth, below and medial to the angle of the left jaw.

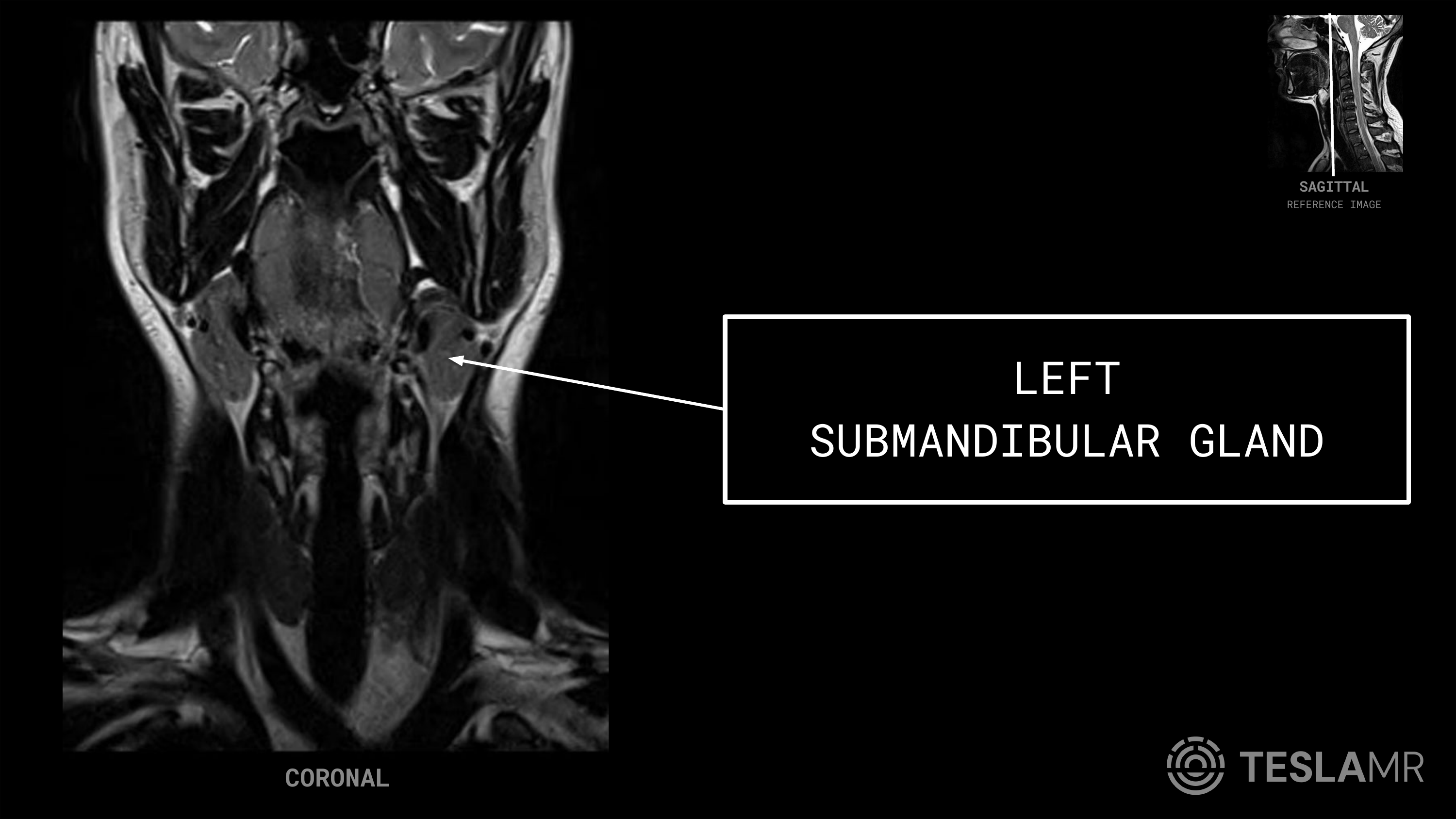

On MRI: A rounded soft-tissue gland in the submandibular space on coronal, with intermediate signal; less fatty and therefore a bit darker on T1 than the parotid.

Common pathology: Sialadenitis and stones (the duct is a common site for calculi), and salivary gland tumors; obstruction causes glandular swelling and enhancement.

Palatine Glands

Clusters of minor salivary glands in the mucosa of the hard and soft palate that contribute to saliva.

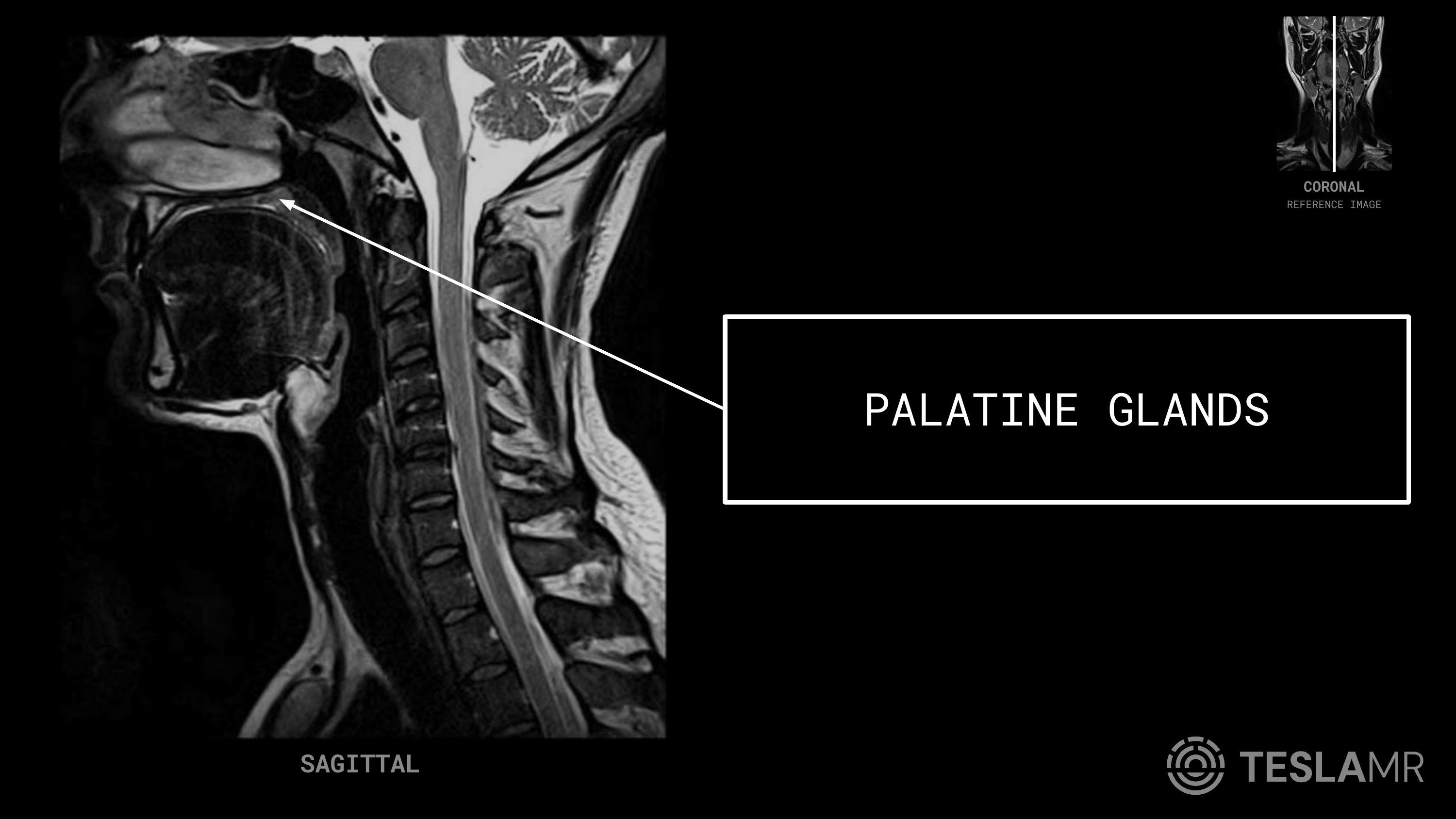

On MRI: A thin band of mucosal soft tissue along the palate on midline sagittal, with intermediate signal; individually small and seen as a layer rather than a discrete gland.

Common pathology: Minor salivary gland tumors (a notable share of which are malignant, such as adenoid cystic carcinoma) and mucoceles can arise here.

Vessels

The great arteries of the neck and upper mediastinum. On standard spin-echo MRI flowing blood is a dark flow void, which makes these vessels stand out against the surrounding soft tissue.

Common Carotid Artery

The major paired artery on each side of the neck supplying the head, running upward within the carotid sheath before splitting into internal and external carotids.

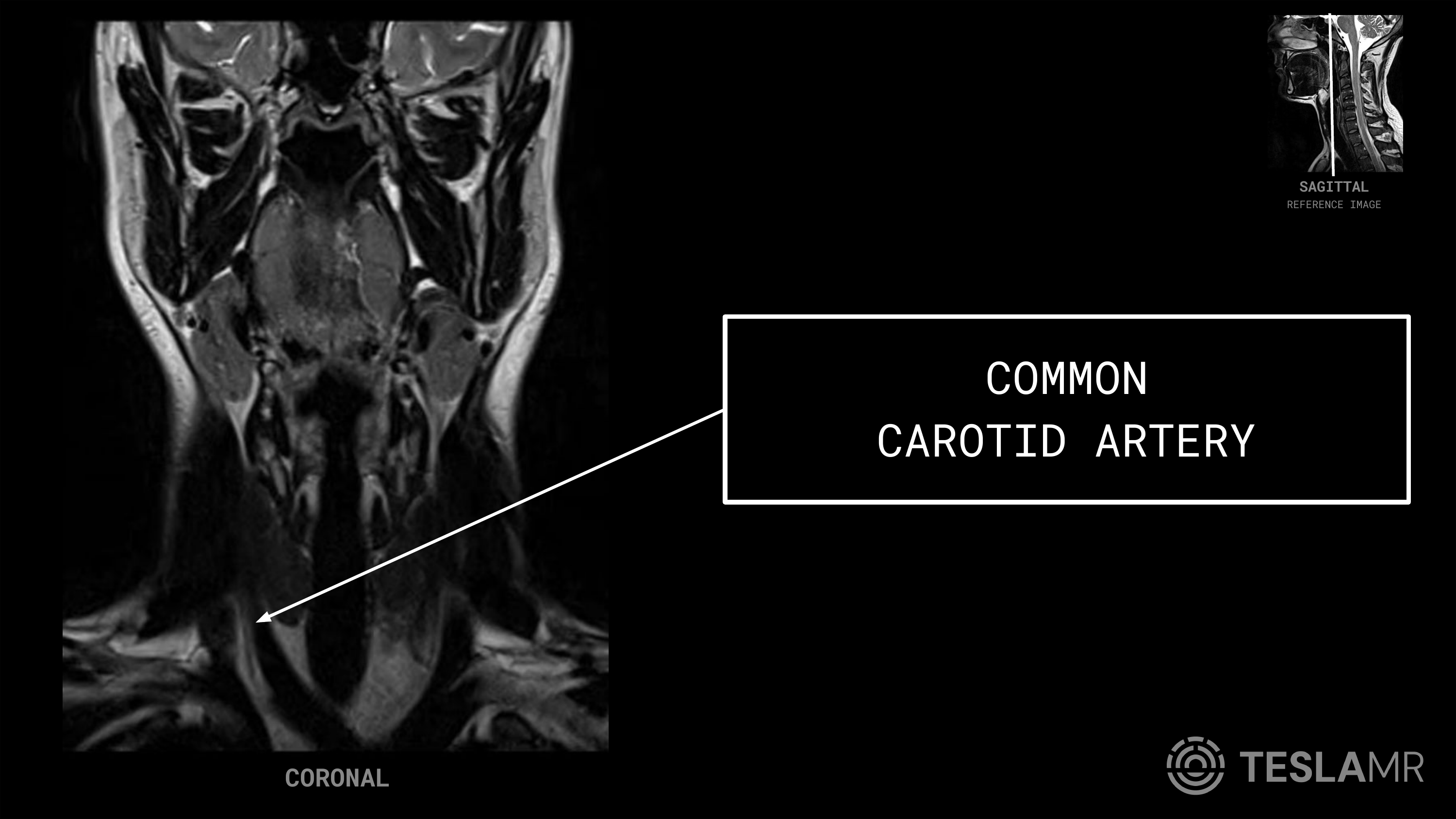

On MRI: A round dark flow void lateral to the thyroid and trachea on coronal, paired side to side; bright on time-of-flight or contrast MRA.

Common pathology: Atherosclerotic disease, dissection, and encasement or displacement by thyroid and nodal masses.

Tip: Trace it upward as a vertical dark tube alongside the airway; it is the main vessel in the carotid sheath next to the thyroid lobe.

Brachiocephalic Trunk

The first large branch off the aortic arch, which divides into the right common carotid and right subclavian arteries.

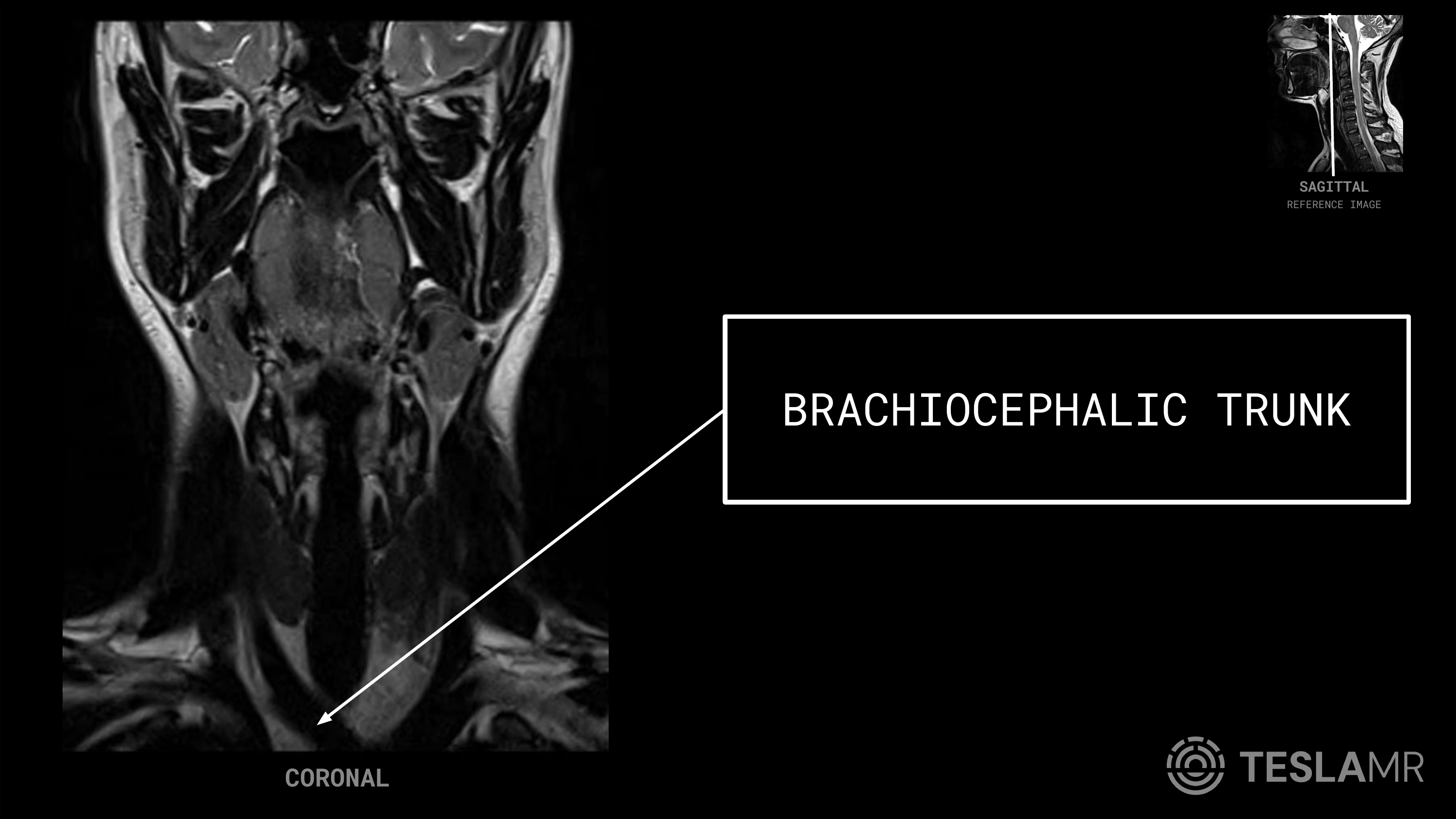

On MRI: A short dark flow void in the upper mediastinum on coronal, low in the neck behind the manubrium, giving rise to the right common carotid above it.

Common pathology: Atherosclerosis, aneurysm, and displacement by mediastinal or lower-neck masses; mostly a landmark for the origin of the right neck vessels on neck imaging.

Bony landmarks

The bones that frame the neck and orient the study: the hyoid in the middle, the clavicle and manubrium at the base, and the occipital bone at the skull base. Cortical bone is dark on MRI with brighter fatty marrow inside.

Hyoid Bone

The U-shaped bone in the front of the neck that anchors the tongue and larynx and is the only bone in the body that does not articulate with another bone.

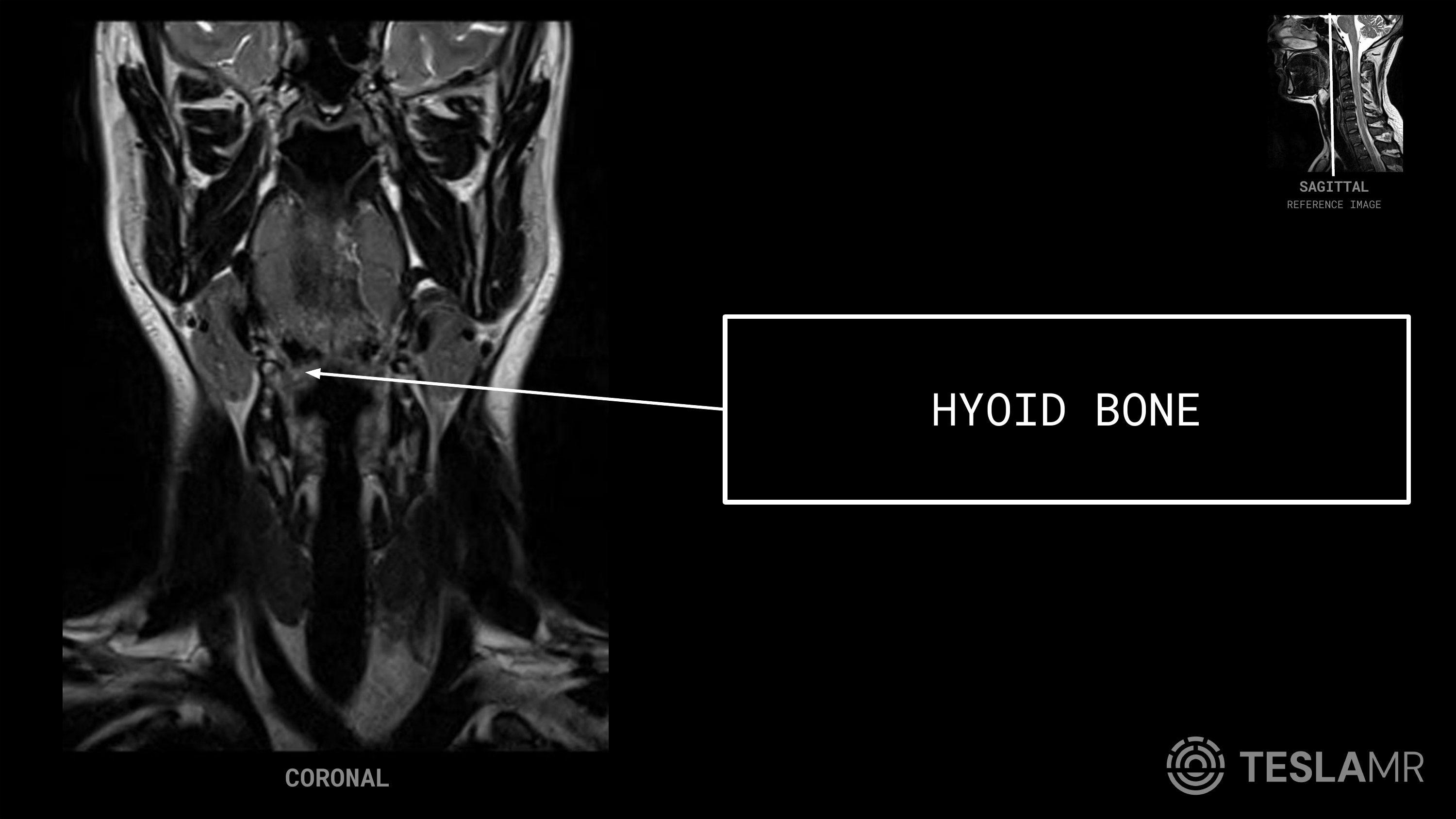

On MRI: A small bony landmark below the tongue and above the larynx; its cortex is dark with brighter marrow signal, seen as a midline marker on sagittal and as a curved structure on coronal.

Common pathology: A key level marker dividing suprahyoid from infrahyoid neck; thyroglossal duct cysts relate to it, and it is a landmark for staging and surgical planning.

Tip: On the midline sagittal it is the little bone sitting just below the tongue base, separating the floor of the mouth from the larynx below.

Clavicle

The collarbone, the long bone connecting the sternum to the shoulder at the base of the neck.

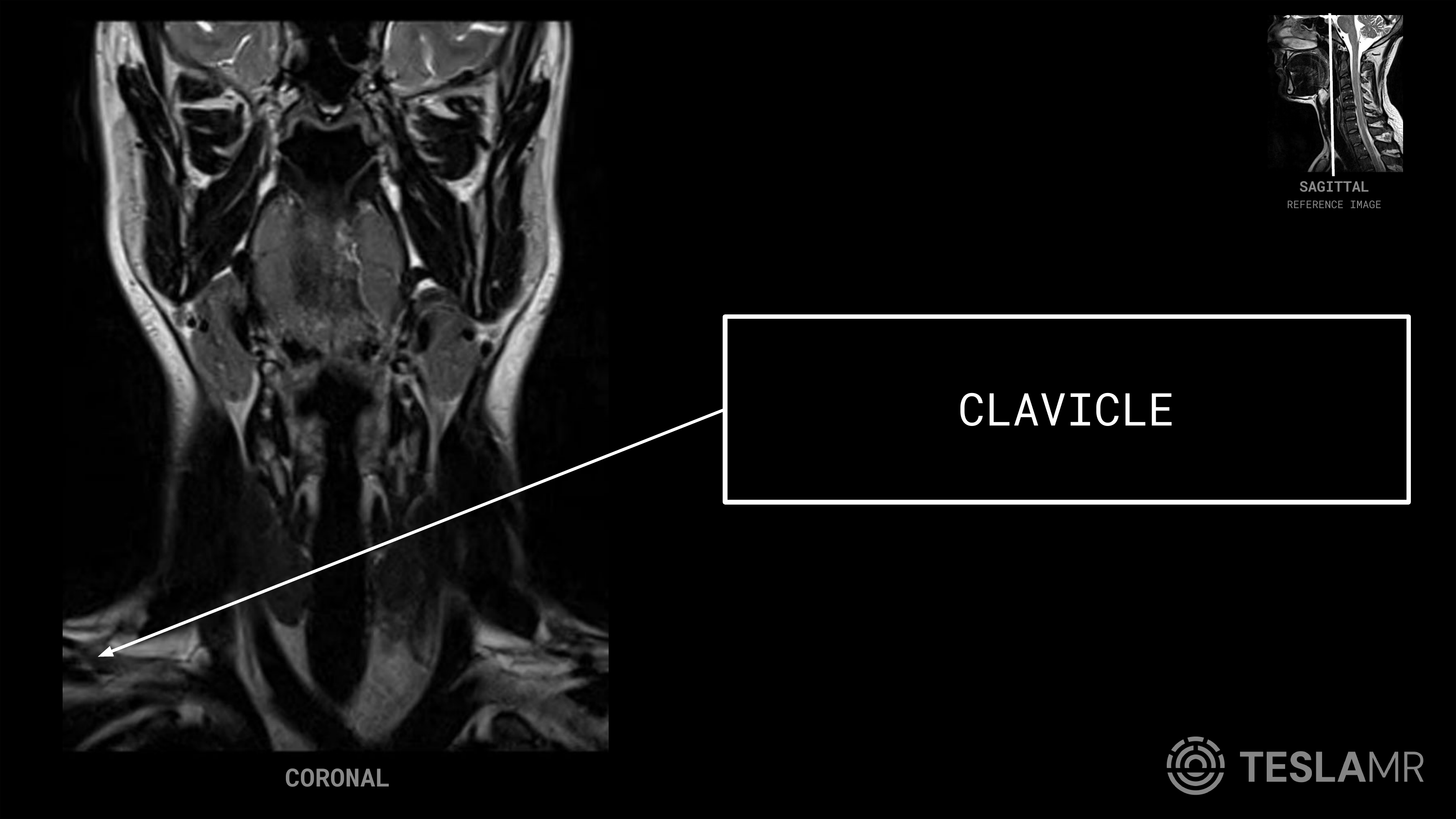

On MRI: A horizontal bone at the lower margin of a coronal neck image, with dark cortex and bright fatty marrow; marks the inferior boundary of the neck field of view.

Common pathology: Fractures, metastases, and marrow signal change; on neck MRI it mainly frames the lower extent of the study and the supraclavicular nodal region.

Manubrium

The upper portion of the sternum, sitting at the base of the neck where the clavicles attach.

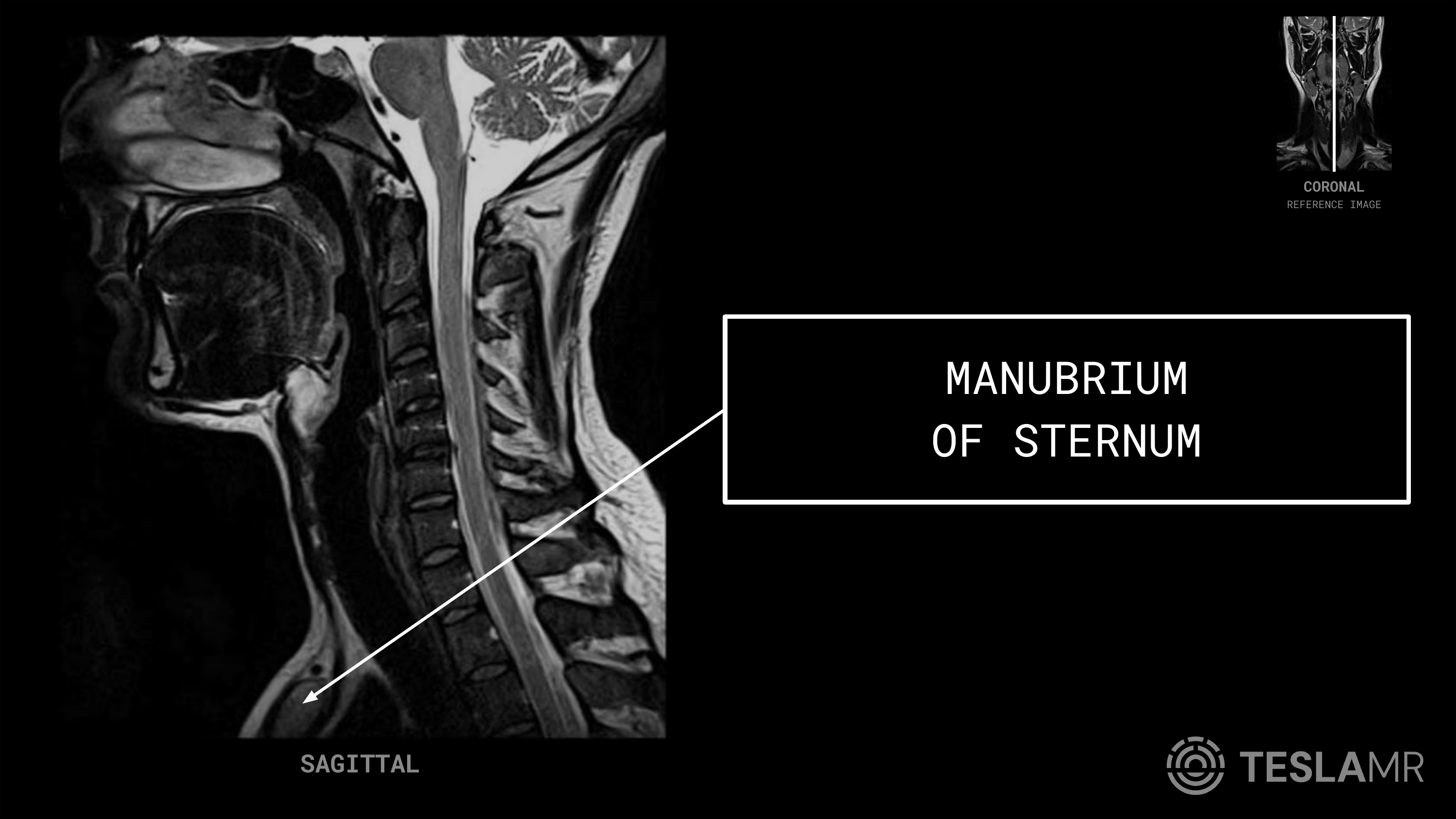

On MRI: A block of bone low on the midline sagittal with dark cortex and bright marrow, marking the bottom of the neck just anterior to the great vessels.

Common pathology: Marrow infiltration from metastases or marrow disease, and a landmark for the thoracic inlet and retrosternal extension of thyroid goiter.

Occipital Bone

The bone forming the back and base of the skull, containing the foramen magnum where the brainstem becomes the spinal cord.

On MRI: A curved bone at the top-posterior corner of a midline sagittal neck image, with dark cortex and bright fatty marrow; it caps the upper extent of the field of view.

Common pathology: Metastases and marrow disease, and craniocervical junction abnormalities; on neck imaging it primarily orients the superior, posterior limit of the study.

Frequently asked questions

What structures are seen on a soft tissue neck MRI?

A soft tissue neck MRI shows the airway and pharynx (tongue, hard palate, trachea, esophagus), the thyroid lobes and salivary glands (parotid, submandibular, and minor palatine glands), the major vessels (common carotid artery and brachiocephalic trunk), and the bony landmarks that frame the neck (hyoid bone, clavicle, manubrium, occipital bone). This page labels each one with its MRI appearance.

Which planes are best for studying soft tissue neck anatomy?

These flashcards use coronal and sagittal planes. The midline sagittal lines up the airway, tongue, hyoid, and esophagus top to bottom and is excellent for orientation, while the coronal compares the thyroid lobes, carotid vessels, and salivary glands side to side. In clinical practice axial images are added for cross-sectional detail and nodal assessment.

How do you tell the trachea from the esophagus on neck MRI?

The trachea is the larger, more anterior air-filled column and is signal-void (black) because it holds air. The esophagus sits directly behind it as a smaller, usually collapsed soft-tissue tube and is often subtle when empty. Following them down the midline sagittal makes the front-to-back relationship clear.

What sequences are used for a soft tissue neck MRI?

A typical soft tissue neck protocol uses T1-weighted images to show fatty planes and marrow, T2-weighted and fat-suppressed sequences to highlight fluid, inflammation, and tumor, and post-contrast fat-suppressed T1 to assess enhancing masses and lymph nodes. Flowing blood in the carotid and brachiocephalic vessels appears as a dark flow void on standard spin-echo images.

Do I need an account to use these Soft Tissue Neck MRI flashcards?

No. The interactive flashcards and this full labeled reference are open to use, with no account required to start. Creating an account lets you save your progress across devices and track which packs you have mastered.
