Female Pelvis anatomy, structure by structure

Female pelvis MRI is built on T2-weighted imaging, and reading it starts with knowing the normal anatomy cold. This reference walks through every structure in our female pelvis flashcard deck across the three standard planes (sagittal, coronal, and axial), with a plain-language definition, how each structure looks on MRI, and the pathology you will actually run into at the scanner. The single most useful concept is uterine zonal anatomy: on T2 the endometrium is bright, the junctional zone is dark, and the outer myometrium is intermediate.

Uterus and cervix

The central midline organs of the female pelvis, best oriented on the sagittal T2 where the uterus, cervix, and vagina line up front to back. T2 reveals zonal anatomy.

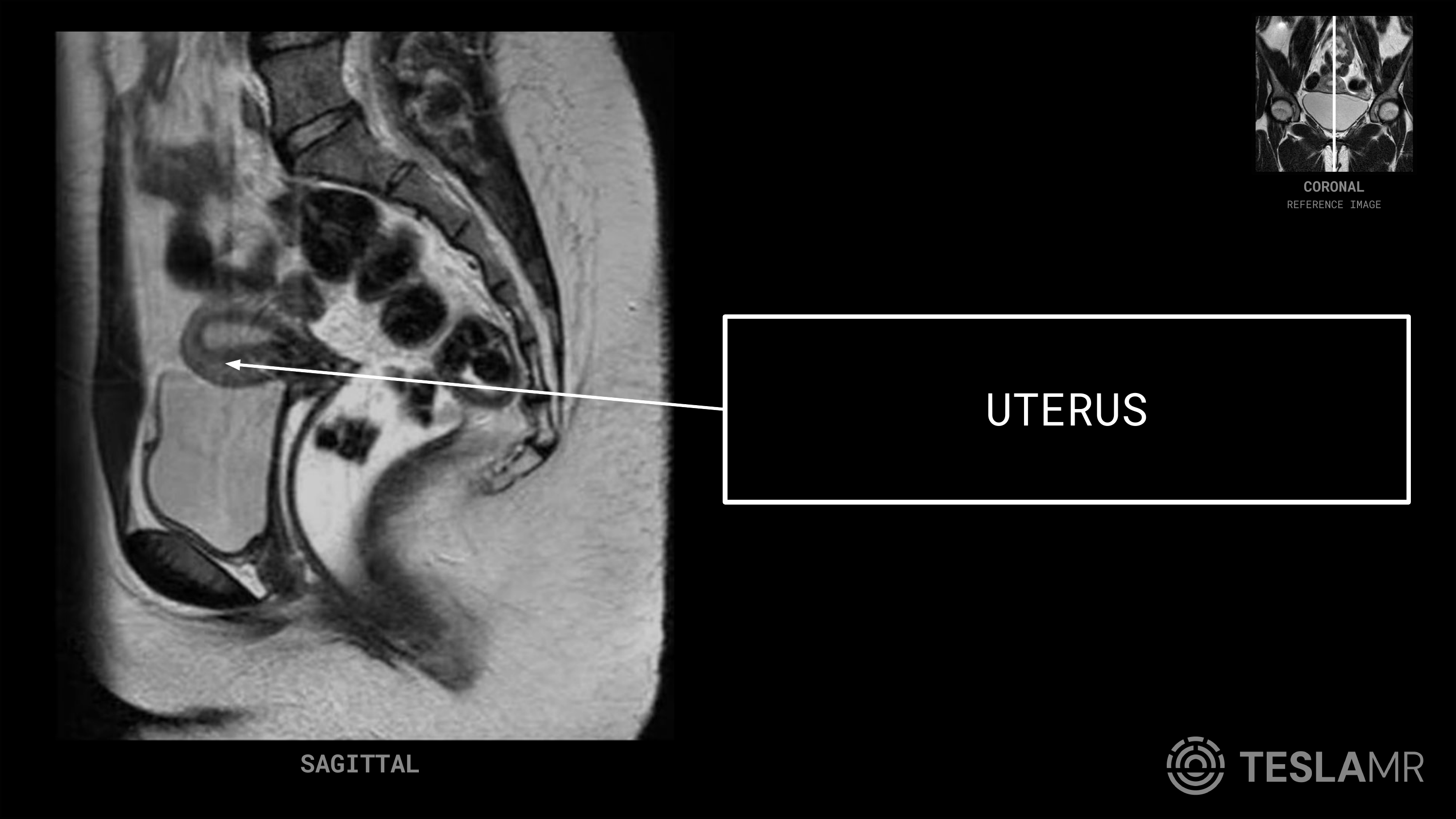

Uterus

The muscular, pear-shaped midline organ between the bladder and rectum that carries a pregnancy; its wall is mostly myometrium surrounding the endometrial cavity.

On MRI: Best assessed on T2: the outer myometrium is intermediate signal, the inner junctional zone is a thin dark band, and the central endometrium is bright. Sagittal shows the overall axis (anteverted or retroverted); axial and coronal compare the walls side to side.

Common pathology: Leiomyomas (fibroids) are dark T2 masses that distort the wall; adenomyosis widens the junctional zone (greater than about 12 mm); endometrial and myometrial tumors are staged on T2.

Tip: Sagittal T2 is the workhorse for uterine version and flexion; prescribe additional planes off the long axis of the uterine body.

Endometrium

The inner glandular lining of the uterus that thickens and sheds with the menstrual cycle and is where an embryo implants.

On MRI: The bright central stripe within the uterus on T2, surrounded by the dark junctional zone. Its thickness varies with cycle phase and hormonal status.

Common pathology: Endometrial thickening, polyps, and endometrial carcinoma; junctional zone integrity on T2 is a key clue to depth of myometrial invasion.

Tip: Trace the bright T2 stripe from the fundus down to the cervix; loss of the dark junctional zone next to it suggests invasion.

Cervix

The lower, narrow neck of the uterus that opens into the vagina; it has a fibrous stromal ring around a central canal.

On MRI: On T2 the central canal and inner mucosa are bright, surrounded by a low-signal fibrous stromal ring. Sagittal and axial oblique planes show it best between the uterine body above and the vagina below.

Common pathology: Cervical carcinoma is staged on T2 by looking for disruption of the dark stromal ring; nabothian cysts are common benign bright T2 foci.

Vagina

The muscular canal extending from the cervix to the vaginal opening, below the bladder and in front of the rectum.

On MRI: A flattened structure with a low-signal muscular wall and a brighter T2 mucosal layer; the axial view shows its characteristic H or W shape collapsed between the urethra and rectum.

Common pathology: Vaginal cuff evaluation after hysterectomy, vaginal or fistula assessment, and extension of cervical tumors into the vaginal wall.

Ovaries

The paired gonads sitting lateral to the uterus, usually identified by their follicles. Axial and coronal T2 are the most reliable planes for finding them.

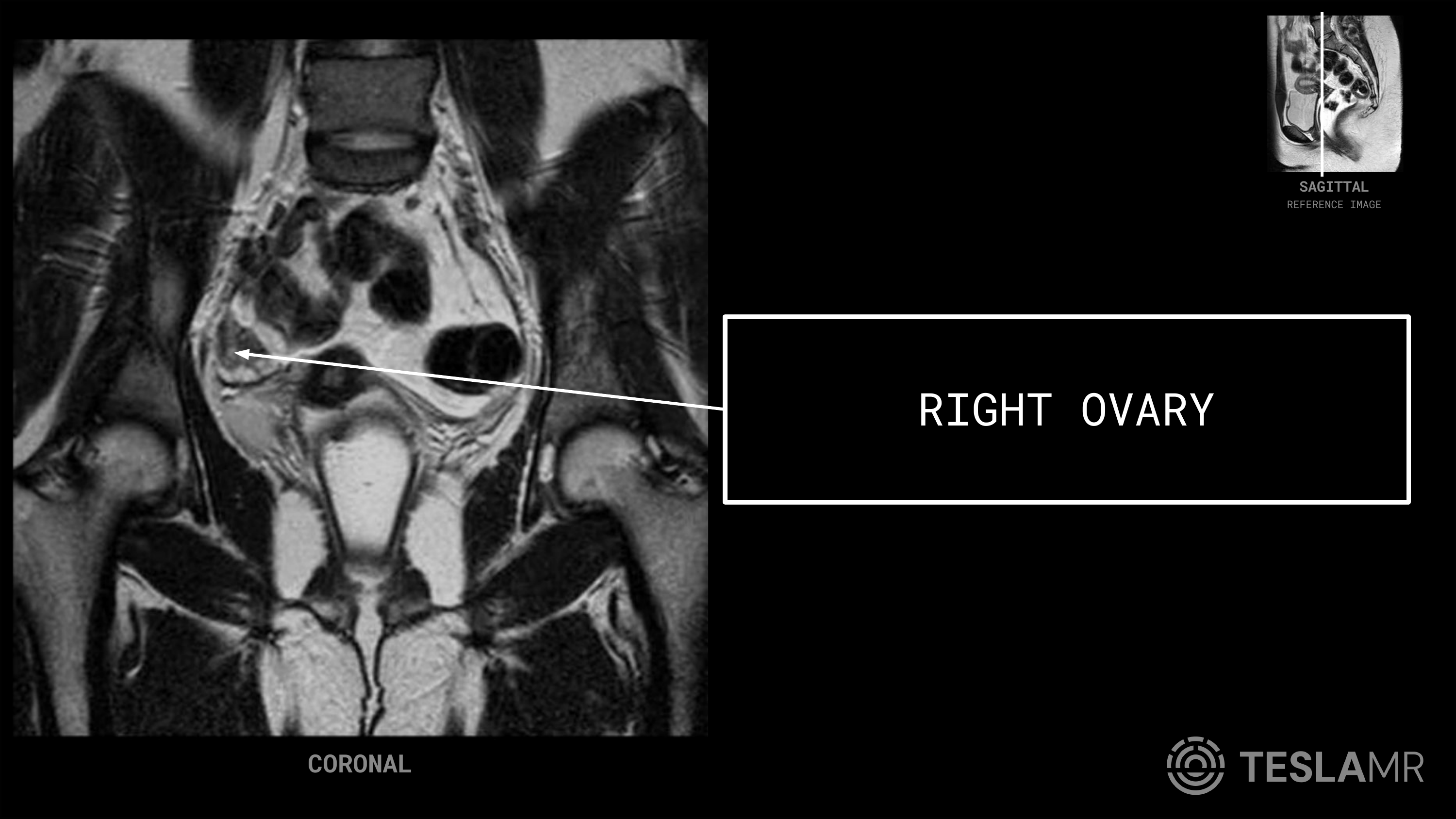

Right Ovary

The right almond-shaped gonad that produces eggs and hormones, situated lateral to the uterus near the pelvic sidewall.

On MRI: Recognized on T2 by multiple small bright follicles around an intermediate stroma; look lateral to the uterine body, often near the internal iliac vessels. Position is variable, especially after prior surgery.

Common pathology: Functional and hemorrhagic cysts, endometriomas (T2 shading), dermoids, and ovarian neoplasms; torsion is a surgical emergency.

Tip: Follicles are the giveaway: scan laterally from the uterus on axial T2 until you find the cluster of small bright cysts.

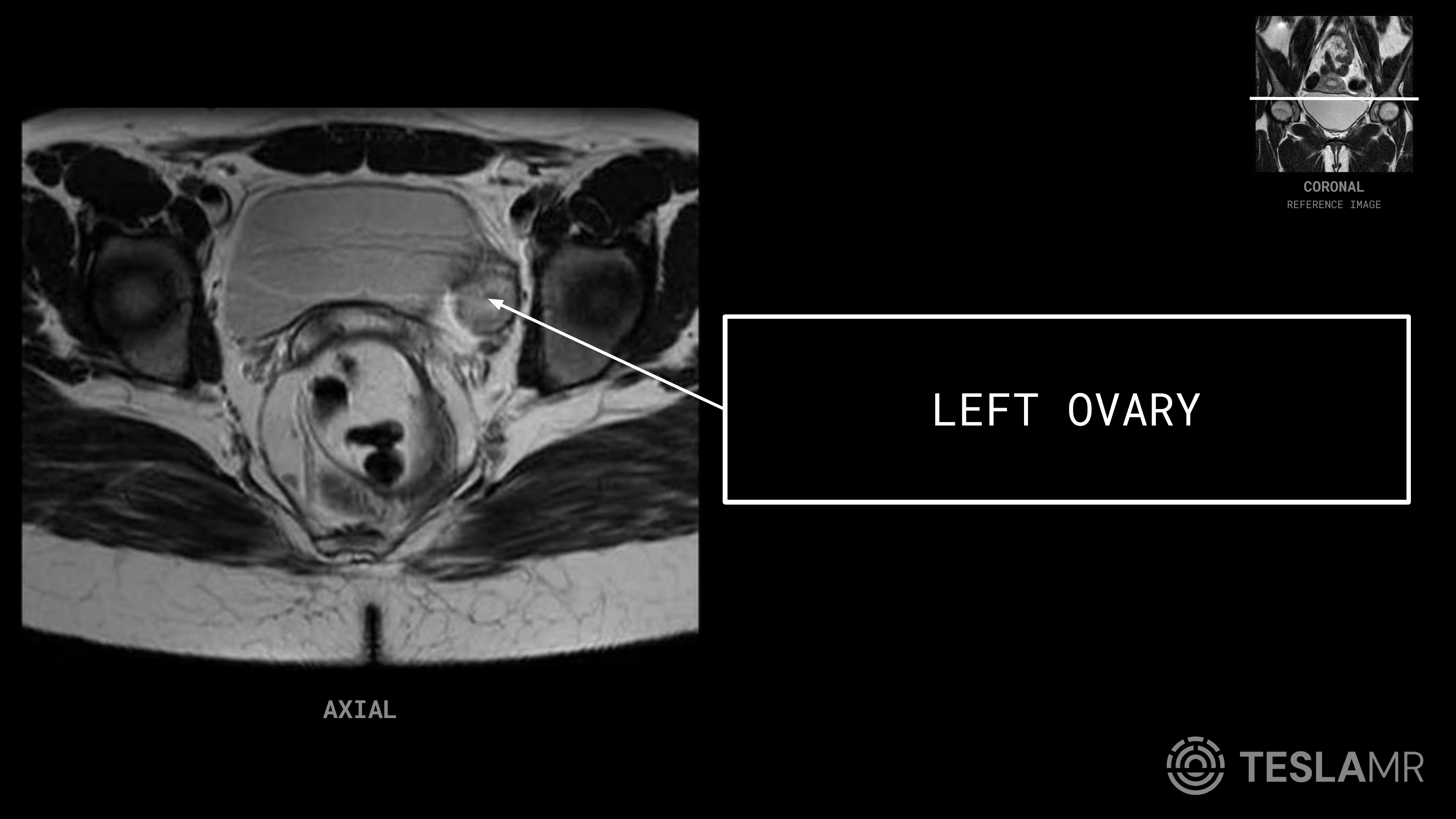

Left Ovary

The left almond-shaped gonad that produces eggs and hormones, situated lateral to the uterus near the pelvic sidewall.

On MRI: Same T2 appearance as the right ovary: small bright follicles surrounding intermediate stroma, found lateral to the uterus. Compare size and follicle count side to side.

Common pathology: Functional and hemorrhagic cysts, endometriomas, dermoids, and ovarian neoplasms; torsion is a surgical emergency.

Pelvic organs

The urinary and bowel structures that bracket the reproductive organs. Their fluid and air content makes them easy landmarks on T2.

Urinary Bladder

The hollow muscular reservoir for urine, sitting in the anterior pelvis in front of the uterus and vagina.

On MRI: Urine is dark on T1 and very bright on T2, outlining the thin low-signal bladder wall. A comfortably full bladder improves anatomic display on all three planes.

Common pathology: Bladder wall thickening, diverticula, and tumors; tumor or endometriosis can invade the wall from adjacent organs.

Tip: The bright T2 urine is your anterior anchor; the uterus sits just behind it on sagittal.

Rectum

The terminal segment of the large bowel in the posterior midline pelvis, behind the vagina and uterus.

On MRI: Shows a layered wall on T2 with low-signal muscle and variable luminal content; the posterior midline position behind the vagina is the key landmark.

Common pathology: Rectal carcinoma is staged on high-resolution T2; posterior endometriosis and rectovaginal nodules are also evaluated here.

Anal Canal

The short terminal passage of the bowel below the rectum, surrounded by the internal and external sphincter muscles.

On MRI: On coronal T2 the sphincter complex forms concentric rings around the canal: the inner smooth-muscle sphincter is brighter than the outer striated sphincter.

Common pathology: Perianal fistulas and abscesses (classically mapped on dedicated T2 and post-contrast sequences) and anal sphincter injury.

Sigmoid Colon

The S-shaped segment of colon that connects the descending colon to the rectum in the upper pelvis.

On MRI: A loop of bowel with a thin wall and mixed gas and fluid content, usually in the left upper pelvis above the rectum; gas appears as signal void.

Common pathology: Diverticulosis and diverticulitis, sigmoid involvement by endometriosis, and occasional bowel masses.

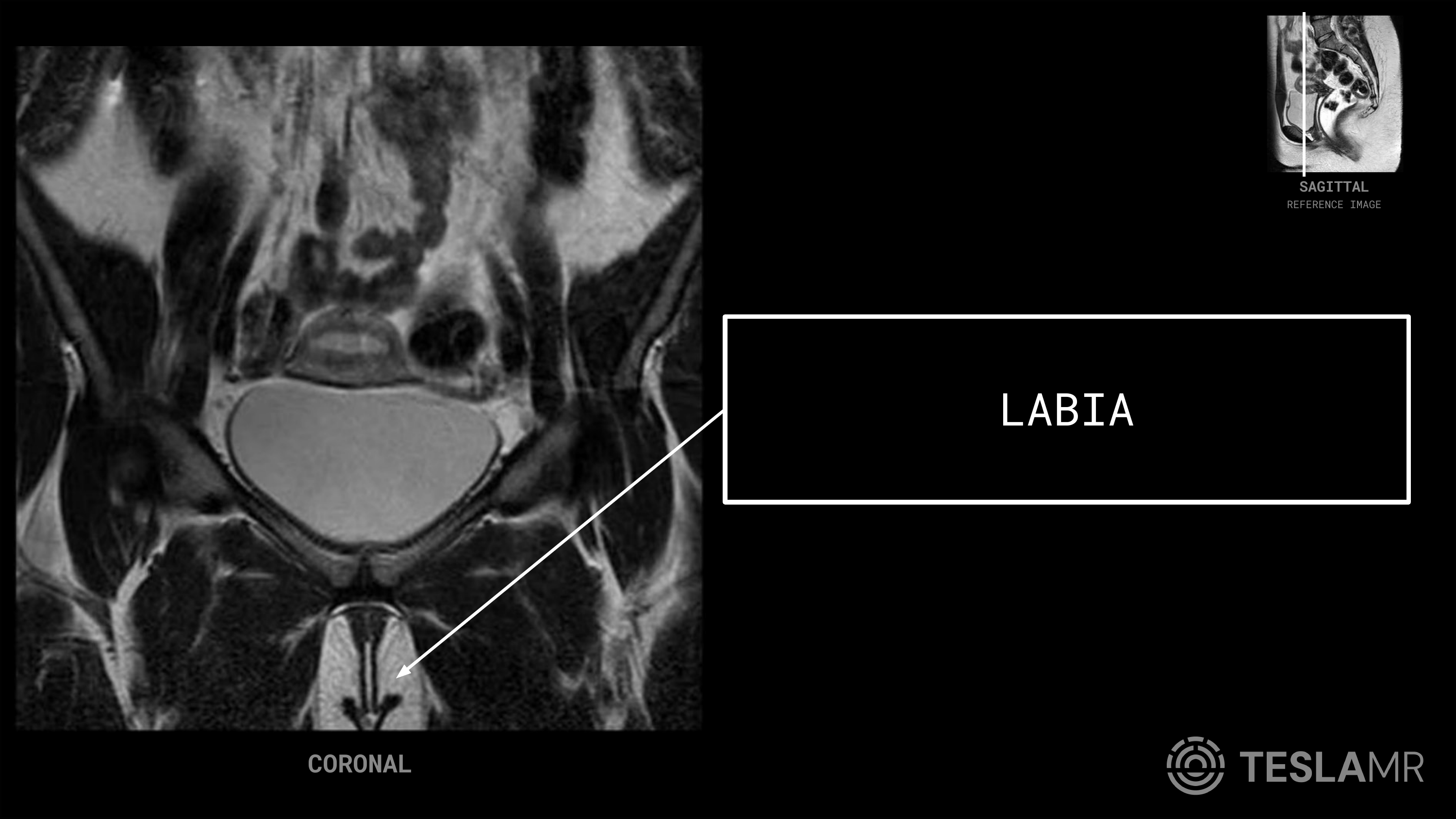

Labia

The external soft-tissue folds (labia majora and minora) of the vulva at the lower opening of the pelvic floor.

On MRI: Inferior fatty and soft-tissue folds on coronal T2 at the perineum, flanking the lower vagina; fat is bright on T1.

Common pathology: Bartholin gland cysts, vulvar masses, and inflammatory or post-surgical changes of the perineum.

Bony pelvis and muscles

The skeletal frame and the abdominal wall muscle that bound the pelvis. Cortical bone is dark and fatty marrow is bright on T1.

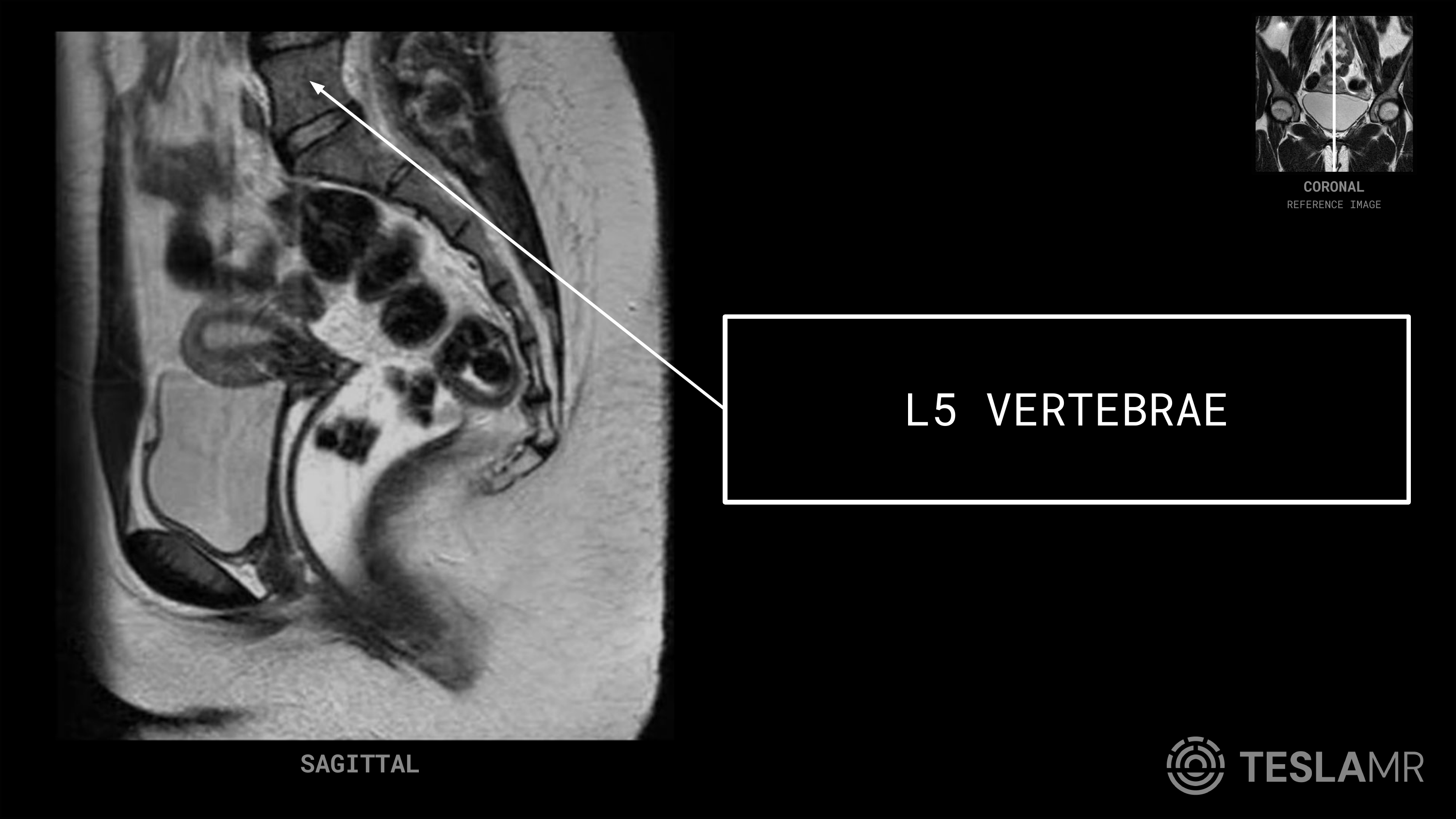

L5 Vertebrae

The fifth and lowest lumbar vertebra, sitting just above the sacrum at the top of the pelvic field of view.

On MRI: A vertebral body with bright fatty marrow on T1 and a dark cortical rim, at the superior edge of the sagittal image above the sacral promontory.

Common pathology: L5 to S1 disc disease and spondylolisthesis; incidental marrow lesions noted at the top of a pelvic study.

Pubic Symphysis

The midline cartilaginous joint where the two pubic bones meet at the front of the pelvis.

On MRI: A midline anterior joint with a low-signal fibrocartilaginous disc between the two pubic bones; bright fatty marrow flanks it on T1.

Common pathology: Osteitis pubis, peripartum symphyseal widening or diastasis, and marrow edema in athletes.

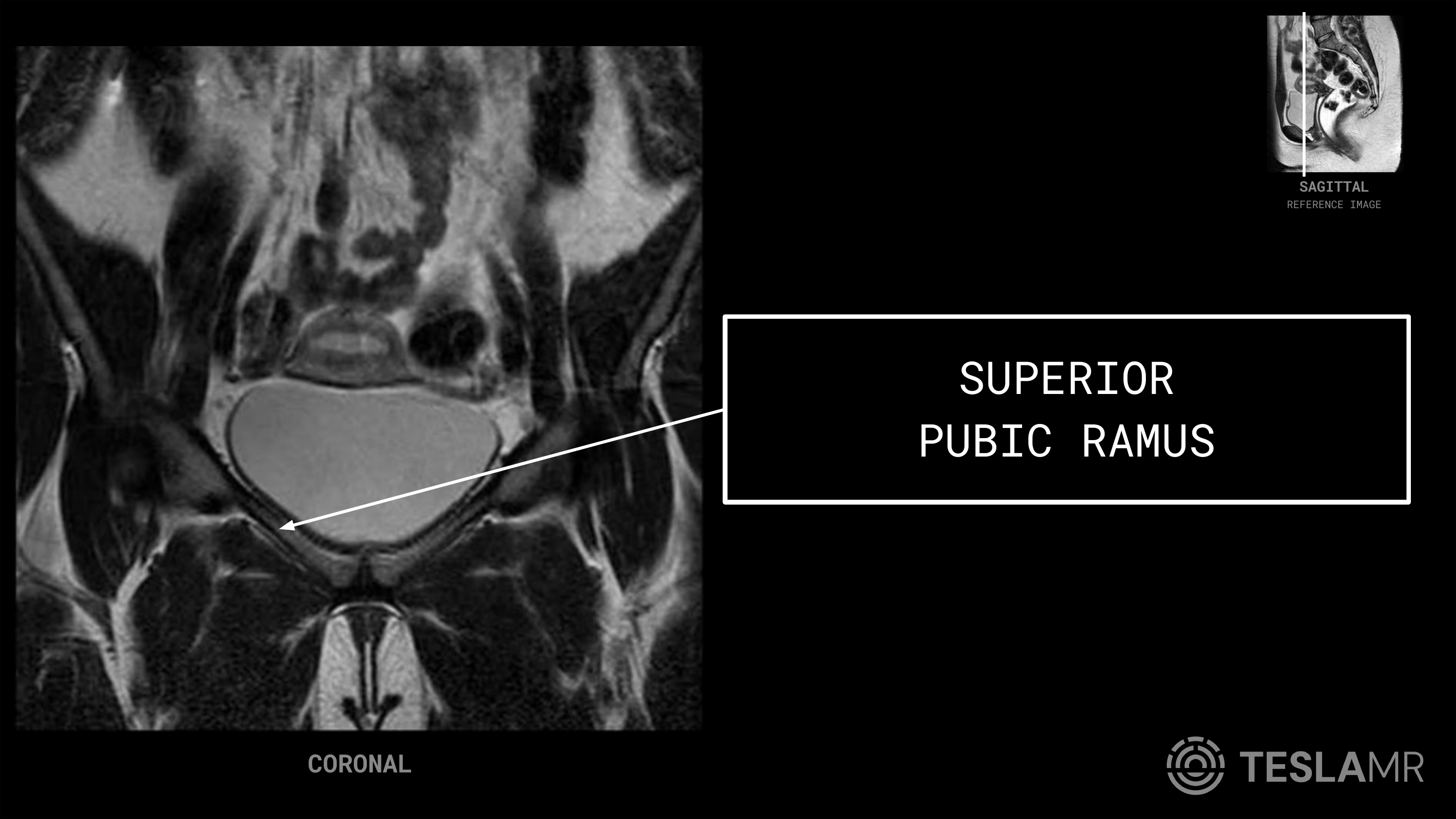

Superior Pubic Ramus

The upper bony arm of the pubic bone running from the body of the pubis toward the acetabulum.

On MRI: A bar of bone with bright fatty marrow on T1 and a dark cortex, forming the anterior part of the bony pelvic ring on coronal images.

Common pathology: Pubic ramus fractures (common in osteoporotic and athletic injury) and marrow signal change from stress reaction.

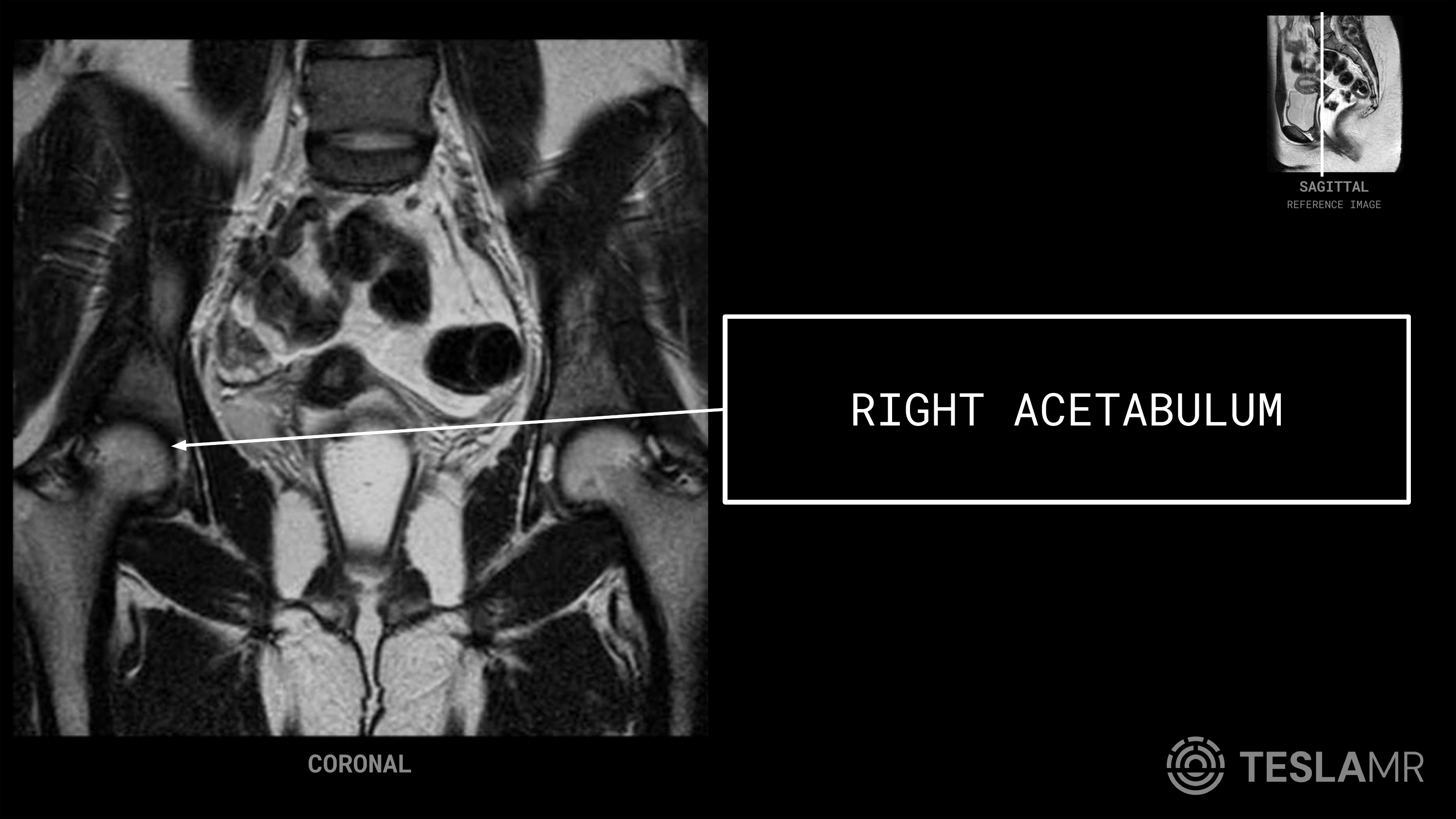

Right Acetabulum

The cup-shaped socket of the right hip bone that articulates with the femoral head.

On MRI: A curved bony socket on coronal T2 with a dark cortical rim and bright fatty marrow; the low-signal labrum lines its outer edge.

Common pathology: Labral tears, acetabular dysplasia, and degenerative changes; incidental hip findings on a pelvic study.

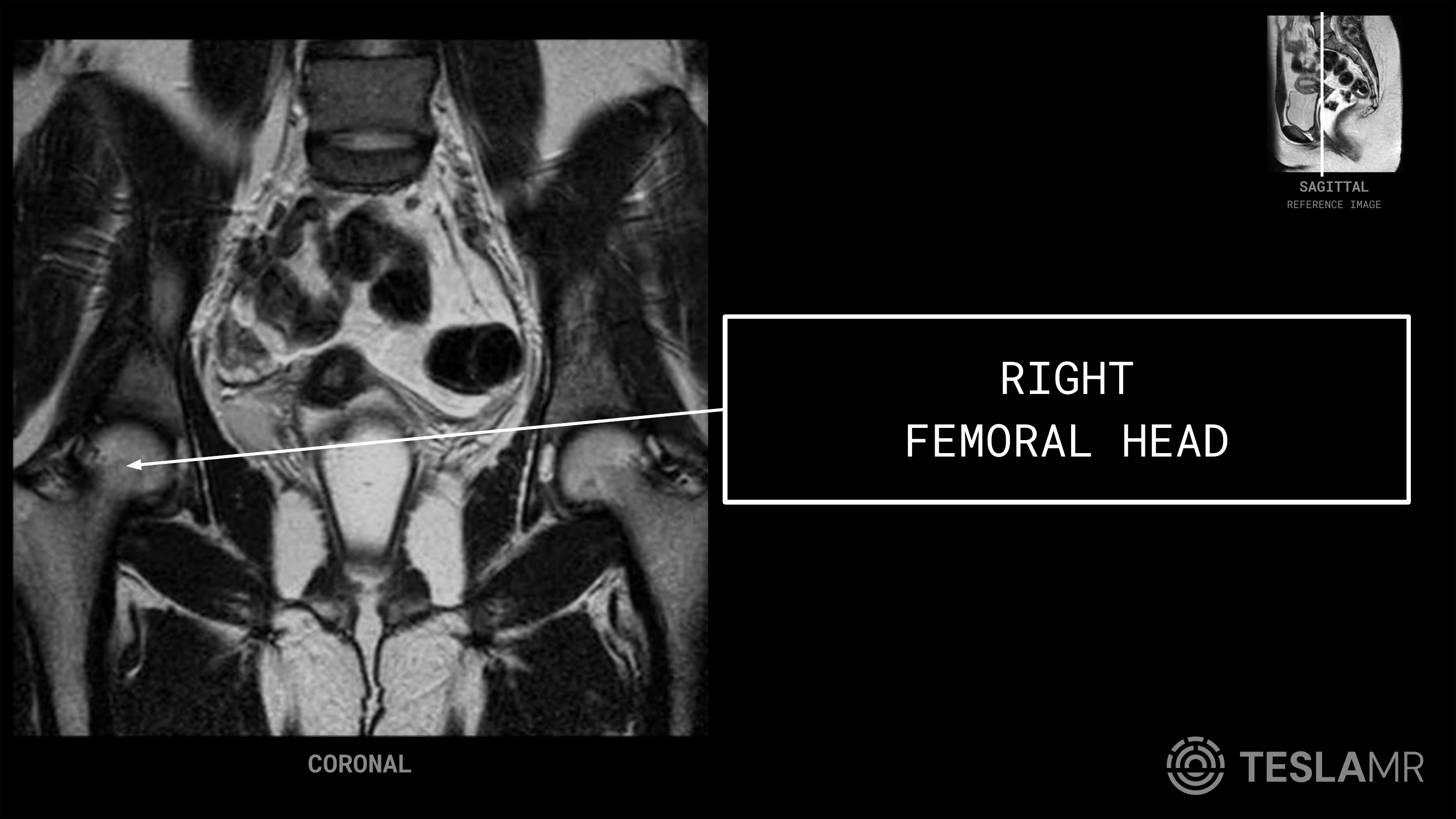

Right Femoral Head

The rounded top of the right femur that fits into the acetabulum to form the hip joint.

On MRI: A round ball of bone with bright fatty marrow on T1 seated in the acetabulum on coronal images, separated by the joint space.

Common pathology: Avascular necrosis (early marrow signal change), fracture, and degenerative arthritis are screened where the head meets the socket.

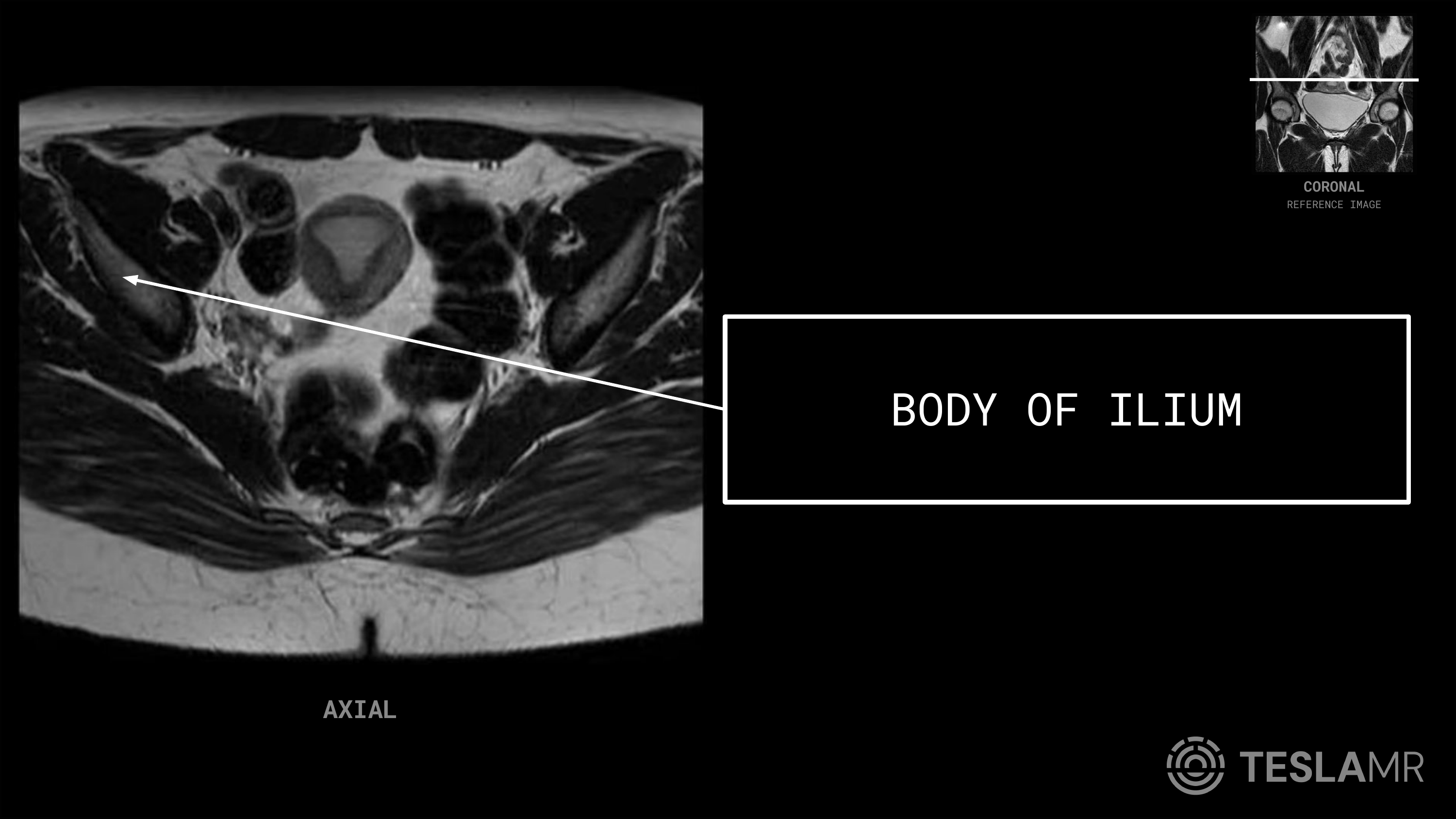

Body of Ilium

The thick lower portion of the iliac bone that helps form the acetabulum and the lateral pelvic wall.

On MRI: A segment of pelvic bone on axial images with a dark cortex and bright fatty marrow, forming part of the bony ring lateral to the pelvic organs.

Common pathology: Bone marrow lesions, metastatic deposits, and fractures noted on the bony framework of the pelvis.

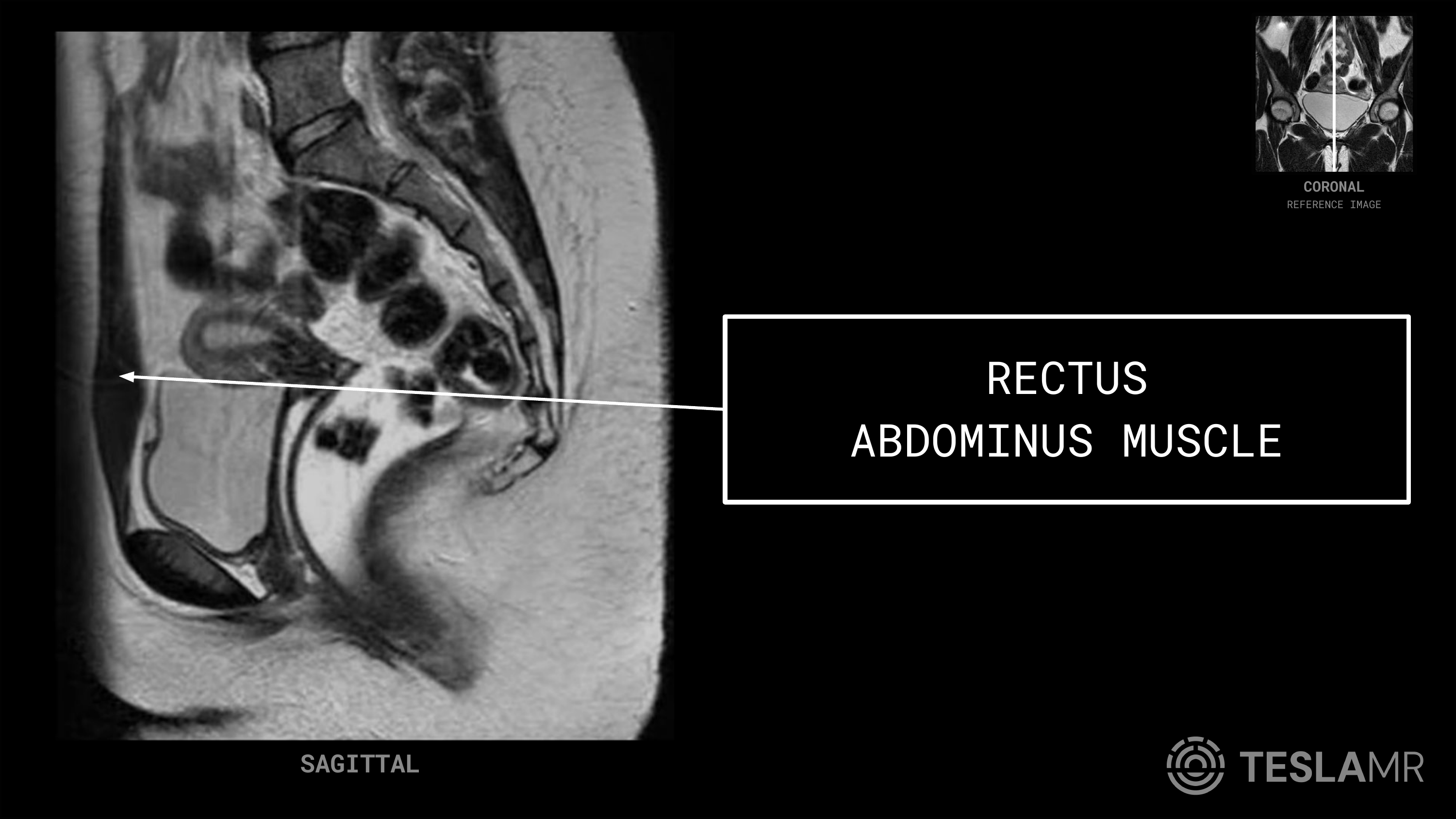

Rectus Abdominus Muscle

The paired vertical strap muscle of the anterior abdominal wall running from the lower ribs to the pubis.

On MRI: An anterior strip of intermediate-signal muscle along the front abdominal wall on sagittal images, just deep to subcutaneous fat.

Common pathology: Rectus sheath hematoma, diastasis recti, and endometriosis implants within a Cesarean scar in the lower muscle.

Frequently asked questions

What structures are seen on a female pelvis MRI?

A standard female pelvis MRI shows the uterus with its zonal anatomy, the endometrium, the cervix, and the vagina; both ovaries; the surrounding pelvic organs (urinary bladder, rectum, anal canal, sigmoid colon, and labia); and the bony pelvis and muscles (L5 vertebra, pubic symphysis, superior pubic ramus, acetabulum, femoral head, body of ilium, and rectus abdominus). This page labels each one with its MRI appearance.

Which plane and sequence are best for studying female pelvis anatomy?

High-resolution T2-weighted imaging is the backbone of female pelvis MRI. The sagittal T2 is the best single image for orientation: it lines up the uterus, cervix, vagina, bladder, and rectum. Axial and coronal T2 are used to find the ovaries and to prescribe oblique planes along the long and short axis of the uterus.

What is uterine zonal anatomy on MRI?

On T2-weighted images the uterus shows three distinct zones: the central endometrium is bright, the junctional zone (inner myometrium) is a thin dark band, and the outer myometrium is intermediate signal. This contrast is only well seen on T2, which is why T2 is essential, and changes in the zones (for example a widened junctional zone in adenomyosis) carry diagnostic meaning.

How do you find the ovaries on a pelvic MRI?

Look lateral to the uterine body on axial or coronal T2 for clusters of small bright follicles surrounding intermediate-signal stroma; the follicles are the most reliable clue. Ovarian position is variable, especially after prior surgery or in older patients, so scroll through adjacent slices and compare the two sides.
